Microk8s
Partager cela

MicroK8s est un outil permettant de deployer ultra facilement un cluster Kubernetes sur n'importe quel distribution linux compatible avec Snap .

Pour installer Microk8s il vous faut un systeme d'exploitation linux avec le paquet snapd d'installé.

Pour ma part j'ai réaliser cette installation sur Ubuntu Server 24.04, j'ai réalisé un post pour l'installation de snap que vous retrouverez via ce lien

Executer cette commande dans un terminal:

snap install microk8s --classic

MicroK8s est maintenant installé, vous pouvez interrogé votre cluster kubernetes (qui pour l'instant n'est composé que d'un noeud) a l'aide de cette commande:

microk8s.kubectl get all --all-namespace -o wide

ce qui vous affichera le contenu de votre cluster.

MicroK8s possède plusieurs options vous permettant notamment d'activer/désactiver des plugins vous permettant de deployer en une commande des foncionnalité suplémentaire a votre cluster comme le dashboard accessible depuis un navigateur, voici la commande:

microk8s enable dashboard

puis cette commande pour le rendre accessible a la demande:

microk8s dashboard-proxy
Checking if Dashboard is running.
Infer repository core for addon dashboard
Waiting for Dashboard to come up.
Trying to get token from microk8s-dashboard-token
Waiting for secret token (attempt 0)
Dashboard will be available at https://127.0.0.1:10443
Use the following token to login:
uQ5Tgx9Q3IwWeJWPk26prhLl00AKQqcPAuy!959q=XFgyQua?/8D!EF!eJBoRmNXRMy4nerpj8fWxyc90O2mcigfm3NXhT/3J6lX53d5y!cJOmFDbrBvaMaYtR/P1VaKaRQqZBa2H/lJtxKrsFIVYjGU2-sV9CTBRc-anbnOX1jRm?HDYgIZVAjpkFnnhhKTZdyFYj1pFIf/2BFWflagga3F=AQpFuidsJ3019CYaA-B1M!pWQQ0YMJqdPRP9b?L

Dans votre navigateur mettez l'adresse ip correspondant a votre serveur/VM : https://<ip du serveur>:10443

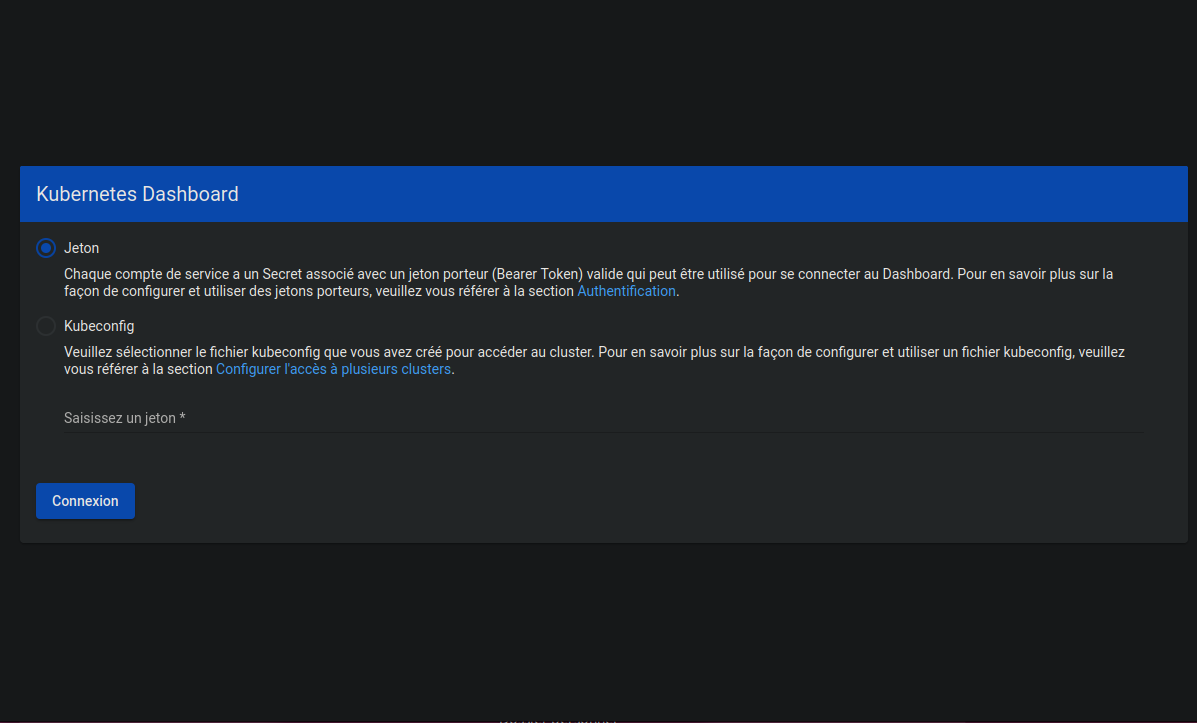

Saisissez le token qui a été généré précédement dans votre terminal et cliquer sur connexion:

microk8s-dashboard-token

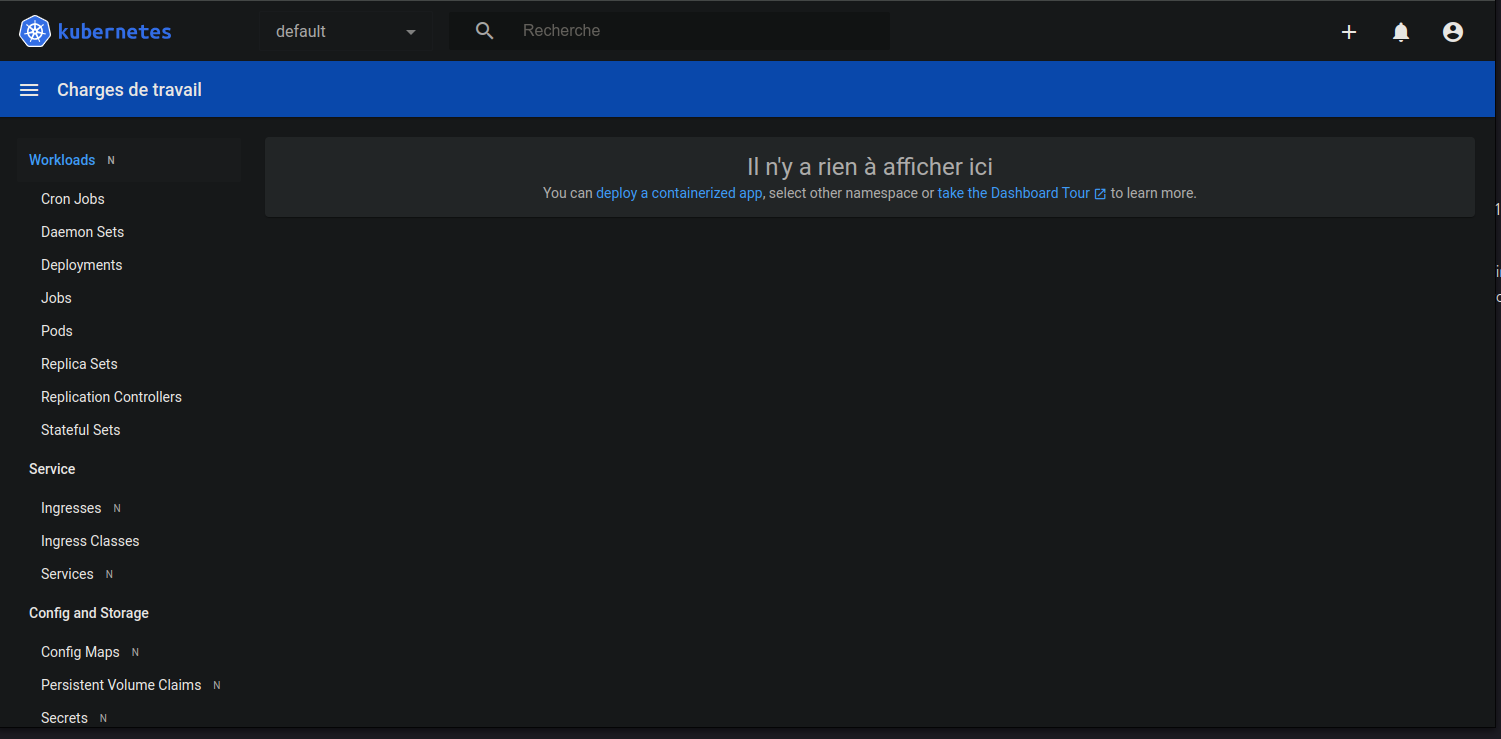

Vous voila connecté au Dashboard de votre cluster kubernetes microk8s.

microk8s-dashboard

pour connaitre la liste des plugins executer la commande:

microk8s status

Voici la liste des plugins officiels:

addons:
  enabled:
    community            # (core) The community addons repository
    dashboard            # (core) The Kubernetes dashboard
    dns                  # (core) CoreDNS
    ha-cluster           # (core) Configure high availability on the current node
    helm                 # (core) Helm - the package manager for Kubernetes
    helm3                # (core) Helm 3 - the package manager for Kubernetes
    hostpath-storage     # (core) Storage class; allocates storage from host directory
    ingress              # (core) Ingress controller for external access
    metallb              # (core) Loadbalancer for your Kubernetes cluster
    metrics-server       # (core) K8s Metrics Server for API access to service metrics
    observability        # (core) A lightweight observability stack for logs, traces and metrics
    rbac                 # (core) Role-Based Access Control for authorisation
    registry             # (core) Private image registry exposed on localhost:32000
    storage              # (core) Alias to hostpath-storage add-on, deprecated
  disabled:
    cert-manager         # (core) Cloud native certificate management
    cis-hardening        # (core) Apply CIS K8s hardening
    gpu                  # (core) Alias to nvidia add-on
    host-access          # (core) Allow Pods connecting to Host services smoothly
    kube-ovn             # (core) An advanced network fabric for Kubernetes
    mayastor             # (core) OpenEBS MayaStor
    minio                # (core) MinIO object storage
    nvidia               # (core) NVIDIA hardware (GPU and network) support
    prometheus           # (core) Prometheus operator for monitoring and logging
    rook-ceph            # (core) Distributed Ceph storage using Rook

Vous pouvez activer le plugin community pour obtenir plus de plugins venant de la communauté grace a cette commande:

microk8s enable community

Voici la liste des plugins communautaire au moment d'écrire ce post (02/01/2025)

    argocd               # (community) Argo CD is a declarative continuous deployment for Kubernetes.
    cilium               # (community) SDN, fast with full network policy
    cloudnative-pg       # (community) PostgreSQL operator CloudNativePG
    dashboard-ingress    # (community) Ingress definition for Kubernetes dashboard
    easyhaproxy          # (community) EasyHAProxy can configure HAProxy automatically based on ingress labels
    falco                # (community) Cloud-native runtime threat detection tool for Linux and K8s
    fluentd              # (community) Elasticsearch-Fluentd-Kibana logging and monitoring
    gopaddle             # (community) Low-Code Kubernetes IDE with AI Co-pilot
    inaccel              # (community) Simplifying FPGA management in Kubernetes
    istio                # (community) Core Istio service mesh services
    jaeger               # (community) Kubernetes Jaeger operator with its simple config
    kata                 # (community) Kata Containers is a secure runtime with lightweight VMS
    keda                 # (community) Kubernetes-based Event Driven Autoscaling
    knative              # (community) Knative Serverless and Event Driven Applications
    kubearmor            # (community) Cloud-native runtime security enforcement system for k8s
    kwasm                # (community) WebAssembly support for WasmEdge (Docker Wasm) and Spin (Azure AKS WASI)
    linkerd              # (community) Linkerd is a service mesh for Kubernetes and other frameworks
    microcks             # (community) Open source Kubernetes Native tool for API Mocking and Testing
    multus               # (community) Multus CNI enables attaching multiple network interfaces to pods
    nfs                  # (community) NFS Server Provisioner
    ngrok                # (community) ngrok Ingress Controller instantly adds connectivity, load balancing, authentication, and observability to your services
    openebs              # (community) OpenEBS is the open-source storage solution for Kubernetes
    openfaas             # (community) OpenFaaS serverless framework
    osm-edge             # (community) osm-edge is a lightweight SMI compatible service mesh for the edge-computing.
    parking              # (community) Static webserver to park a domain. Works with EasyHAProxy.
    portainer            # (community) Portainer UI for your Kubernetes cluster
    shifu                # (community) Kubernetes native IoT software development framework.
    sosivio              # (community) Kubernetes Predictive Troubleshooting, Observability, and Resource Optimization
    sriov-device-plugin  # (community) SR-IOV Network Device Plugin.
    stunner              # (community) A Kubernetes media gateway for WebRTC
    traefik              # (community) traefik Ingress controller
    trivy                # (community) Kubernetes-native security scanner

cette documentation est basé sur la version anglaise officielle, disponible via ce lien.
